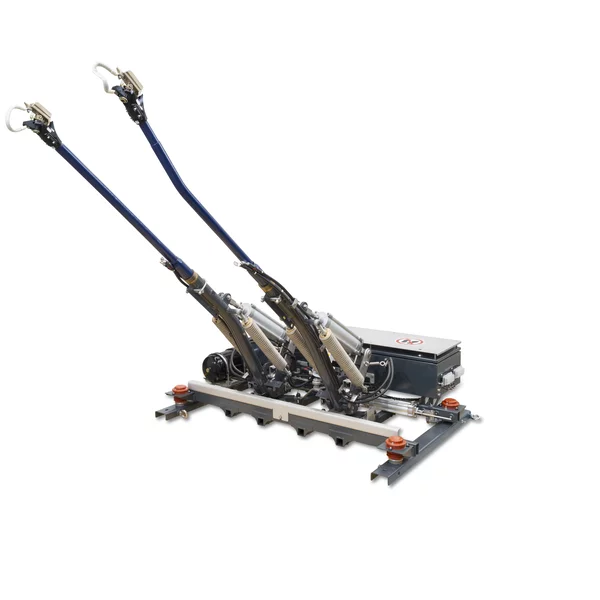

KIEPE Smart Currentcollector KSC 200
Semi-automatic Current Collector System KSC 200 for In Motion Charging (IMC) and trolley buses
With its compact and optimized design, the new Kiepe Smart CurrentCollector offers more installation space below the poles compared to existing current collector systems. The available space can be used for installing additional components, such as traction batteries. The new KSC 200 allows for both purely vertical wiring operations and lateral wiring, which eases the workload for the driving personnel.
Thanks to the plug-and-play approach, the KSC can be integrated into both new vehicles and existing vehicles as part of a modernization project.
The improved control of the poles also enables optimized and rapid lowering behavior in the event of a derailment.
Optional configurations such as headlights or a camera system for monitoring the current collector from the driver’s seat simplify the operation for drivers and maintenance personnel.
The integrated sensors of the KSC support maintenance work by automatically detecting, locating, and diagnosing faults.
Highlights
- Automated wiring and unwiring: up to 3 meters lateral offset between overhead line and bus
- Optimized dimensions for efficient use of the bus roof
- Extended diagnostic system to support service work
- Adjustable contact pressure on the overhead line
- Regulated & constant contact pressure on the overhead line for less and more even carbon wear
- Individually configurable complete package (options)
- Simplified maintenance concept time savings in operational processes
Options
System with individual configuration options: HV fuses
- HV disconnect switches
- Headlights
- Compressed air tank
- Lowering protection
- Switch control
- Camera system
- Extended diagnostics for the pneumatic system
Complete system including current collector poles, heads, and locking unit as well as cable drum in various designs:
- Different pole lengths in straight or cranked design
- Pneumatic retriever unit
- Extended derailment detection
Technical Data
| Dimension (L x W x H) | 1910 x 1920 x 530 mm |
|---|---|
| Weight | 300 - 400 kg (equipment-dependent) |
| Maximum operating voltage | 900 V |
| Maximum current load capacity | 600 A (for 10 minutes at standstill)¹ |
| Overhead line voltage | 600 V / 750 V nominal voltage |
| Working heights (from roof mounting level) | 670 - 4,000 mm (extended working range available on request) |
| Operating height | up to 2000m above sea level² |
¹depending on the infrastructure
²operating areas >2000m above sea level possible on request
